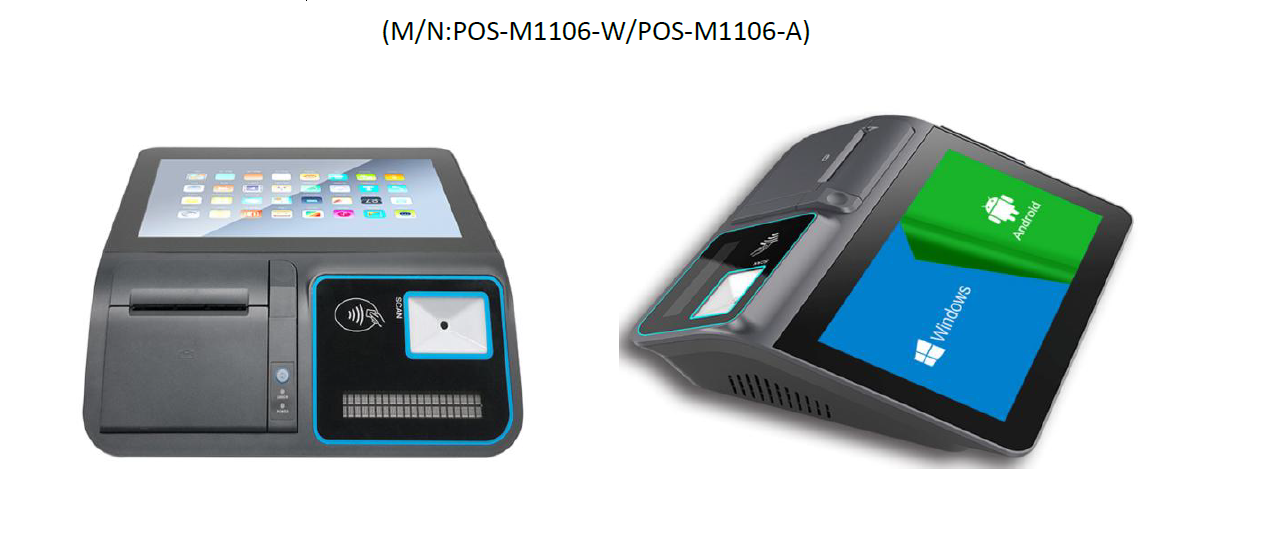

11.6 Inch All In One Android/Windows POS terminal

11.6 Inch All In One Android/Windows POS terminal

N$9,556.00 NAD
N$9,556.00 NAD
Sale Sold out

OCOM M1106 POS machine can be installed with windows or android OS. Select Windows or Android - ,its highly integration make many functions realized just by one POS, this smaller size model save customers much space and cost-effective


Features:
 Intel Celeron series and Rockchip CPU for option
 Hard Driver Msata SSD 64GB ,SSD 128GB and 256 GB for option
 58mm and 80mm high speed thermal printer built in for option
 Multi-point projected capacitive touch panel
 Optional side MSR and VFD220 customer display mounted to back cover
 NFC card reader, bar-code scanner as option
 Ture flat and water-proof scratch-resistant surface display

Download Technical Specifications

We can Install Palladium Accounting POS Integrated Software, monthly fee applicable N$407.00 - See Palladium Accounting



 Specification
Model POS-M1106-W POS-M1106-A
Name
11.6inch all in one Windows
touch screen pos terminal
11.6 inch all in one Android
touch screen pos terminal
Housing plastic with metal combined
Color Whole gray color

Display
Main screen size 11.6 inch touch screen monitor

Resolution
1366*768,1920*1080 for
optional
1366*768,1920*1080 for
optional
Brightness 300cd/m2
View angle Horizon: 160; Vertical :150
Touch screen multi-point projected G+G capacitive touch
Customer display 2*20 VFD or 2*20 LCD mounted to back cover for option

Performance

Motherboard
Intel Celeron Bay Trail J1900
2.0GHz
ARM Cortex-A17,RK 3288
quad core 1.8GHz CPU
System Memory
1*SO-DIMM DDRIII slot,
support1333*/1600 4GB
(default) 2GB/8GB for option
On board 2GB DDRIII
Storage device
Msata SSD 64GB or higer, up
to 256GB
16GB eMMC, support 32GB
TF card expanded for option
Audio
On board Real Tek ALC662
audio chip
On board Real Tek audio chip
ALC5640
LAN
10/100Mbs,Realtek RTL8111F
Lan chip
built in Mini PCI-E
slot,support embedded WIFI
module
10M/100M
RTL8201F,10M/100M/1000M
RTL8211E for option
Operating System
Windows7/8/10,
Embedded,WEPOS,Linux
Android 7.0, up to 8.0

Connectivity

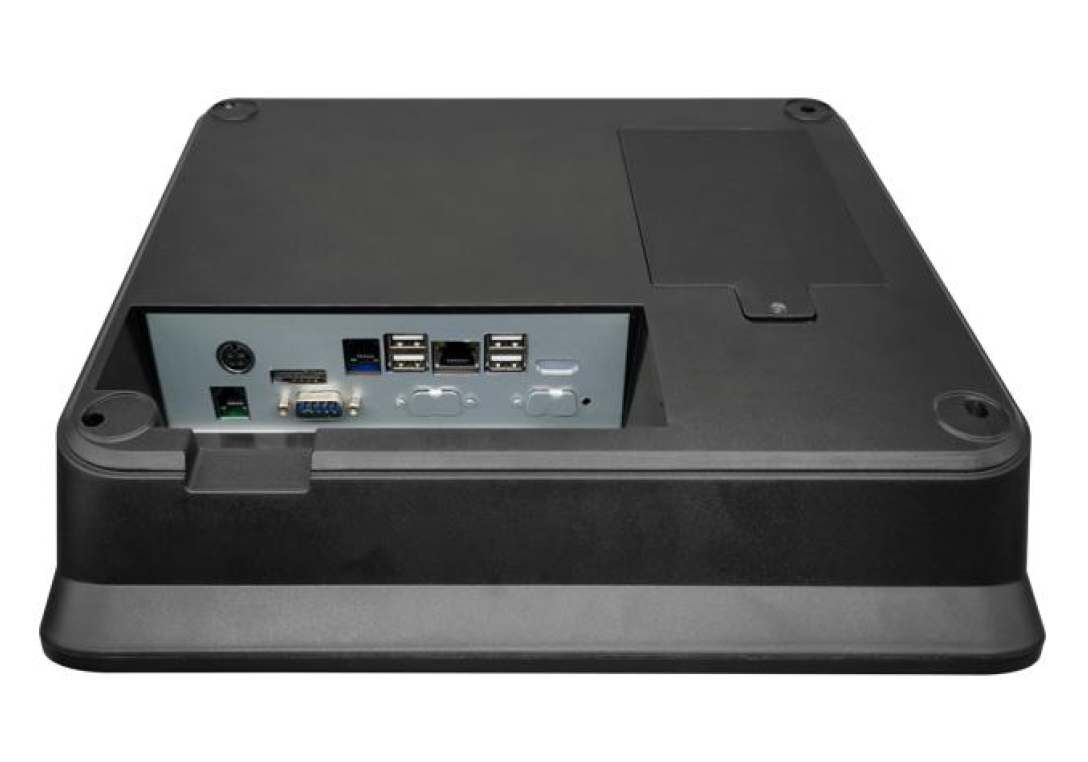

External I/O port(J1900/RK3288)
power button*1
12V DC in jack*1
COM(RS232) * 1, up to 3ports
LAN:RJ-45*1

RJ11 for Cash drawer *1 for
option
RJ11 for Cash drawer *2 for
option
VGA(15Pin D-sub)*1 TF card slot*1
USB *5 USB *5
MIC in*1 Audio out*1 N/A



Optional

80mm thermal printer
direct thermal printing
170mm/s pringting speed
79.5-/+ 0.5mm paper width and printable width 72mm
with atuo cutter function and thermal head life 100km
58mm thermal printer
direct thermal printing
70mm/s pringting speed
57.5-/+ 0.5mm paper width and printable width 48mm
thermal head life 50km
MSR ISO7811 1/2/3 Tracks, Support Dual-swiping
NFC ISO14443TypeA
scanner 1D/2D barcode decoding
Battery 5200mAh large capacity battery



Package

Weight Net 2.4Kg Gross 3.1Kg
Package with foam inside 400*390*190mm



Environment

Operating temperature 0 to 40 degrees centigrade
Storage temperature -10 to 60 degrees centigrade
Working humidity 10%~80% No condensation
Storage humidity 10%~90% No condensation


Accessories


Power adapter 110-240V/50-60HZ AC powerinput ,DC12/5A output adaptor
Power cable
Power cable plug compatible with USA /EU / UK etc and
customized available
CD driver Motherboard driver and touch driver inside
Other
Compliance FCC Class A/CE Mark/LVD/CCC
