Features:

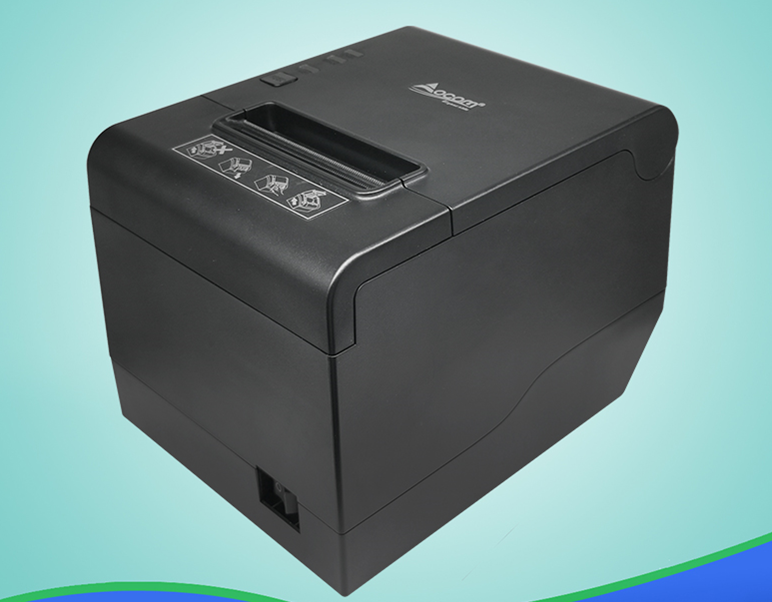

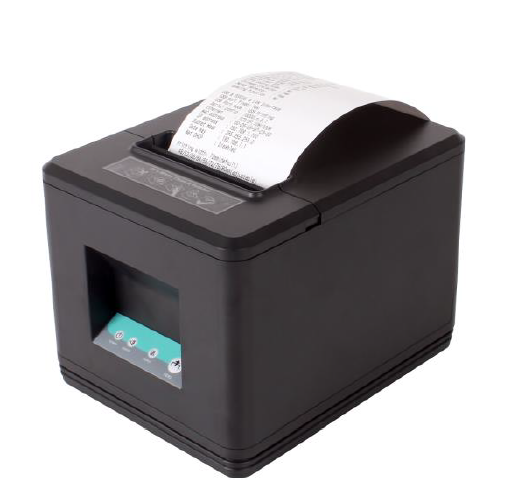

（Model NO.: OCPP-80T）80mm Thermal Receipt Printer
Supports multi 1D barcode and QR code printing.
Support printer status monitoring function
100M Ethernet port, ultra high speed data transmission.
256KB NV Logo storage and 256kb big buffer memory.
Compatible with OPOS/JPOS driver.
100KM long life printer head
Entry Level Type
Free Delivery in Windhoek, contact us on info@rockport.com.na for delivery elsewhere, locally and internationally.
|
Technical
Print Method: Direct Thermal
Command: ESC/POS
Resolution: 576dots/line or 512dots/line
Printing Width Max=72mm
Paper Type Thermal Receipt Paper
Interface USB/UL/U+BT/ U+WIFI
Print Speed
200 mm/s （U）
260 mm/s (UL)
Paper Width 80mm
Paper Thickness 0.06~0.08mm
Roll Dia Max. Ø 83 mm
Paper Cut Manual tear and Auto-cutter
Input buffer 256kbytes
NV Flash 256kbytes
Font Size font A:12*24(standard), font B:9*17
Chinese GB18030,BIG5 24x24dots
Japanese/Korea Support
User-defined
language
PC347(Standard
Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian-Fr
ench),PC865(Nordic),West Europe,Greek,Hebrew,East
Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2),
PC858,IranII,Latvian,Arabic,PT151(1251) ect.
1D
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）
/CODE39/ITF/CODABAR/CODE93/CODE128
2D QR code ( Single USB or UR solution no QR code function)
head life 100 KM
Cutter life 1million
Sensors
Paper out, cover open, cutter jam,paper jam and black mark
detection(Optional)
Input AC 100V-240V 50/60HZ
Output DC 24V/2.5A
Working Condition 0°C~45°C, 10%~80%RH
Storage Condition -10°C-60°C,10%~90%RH
Accessories Data cable,power code,paper roller,manual, (standard)
Dimensions 180(D)x142(W)x136(H)mm
Net weight 1.14kg
Gross weight 1.8kg
8 in 1 carton 48*45*36cm/13.4kg
Driver Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS
SDK Android, IOS
Working
temperature&
humidity
0 to 45 degrees centigrade, 10%~80% No condensation
Storage
temperature&
humidity
-20 to 60 degrees centigrade , 10%~90% No condensation |
|
