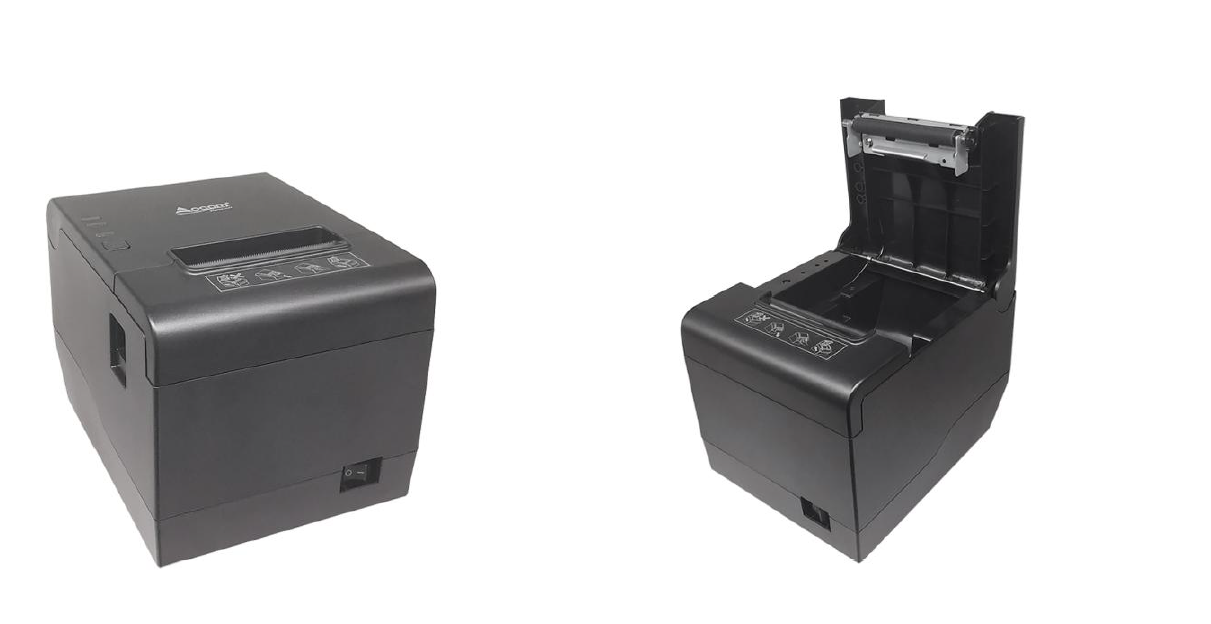

80mm Thermal Receipt Printer With Auto Cutter (Model K)

 Features:

(M/N:OCPP-80K) 80mm Thermal Receipt Printer
It can be used as top paper coming printer and front paper coming printer
It’s built-in power adaptor, which avoid messy cord everywhere, saving much space.
Support 8 kinds abundant interface combination
Supports multi 1D barcode and QR code printing
Support printer status monitoring function
Support printing queuing ticket function
100M Ethernet port, ultra high speed data transmission
256KB NV Logo storage and 256kb big buffer memory
48 or 80mm adjustable paper separator for option
150KM long life printer head

Download Technical Document

Free Delivery in Windhoek, contact us on info@rockport.com.na for delivery elsewhere, locally and internationally.

Technical

Model OCPP-80K
Name 80mm desktop thermal printer with auto cutter
Color Black
Interface
USB/USB+Lan/USB+BT/
USB+WiFi/URL+WIFI/URL+BT/USB+RS232
Power supply Input：AC 100V-240V,50-60Hz,Output：DC 24V/2.5A
Cash drawer DC 24V/1A
Printer head lifespan 150KM
Cutter Auto cutter
Sensors
Paper out, cover open, cutter jam,paper jam and black mark
detection(Optional)
Buffer Input buffer256K，NV Flash 256K
Accessories
Data cable,power adaptor,power cord,paper roller,CD,manual,
Paper separator(optional)
OS supporting Compatible with iOS/ Android/ Windows/Linux
Safety standards CE ,FCC,Rohs etc
Printing capability

Barcode
1D barcode:
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/
CODABAR/CODE93/CODE128
2D barcode：QR CODE（Single USB or UR solution no QR code
function）
Character Standard GB18030 simplified / traditional Chinese Fonts
Character size
384dots/line, ANK character, Font: A: 12*24dots, 1.5(W)*3.0(H) mm
FontB:9*17dots ,1.1(W)*2.1(H)mm
Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm
Japanese/Korea support
User-defined language

k/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranI
I/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC
864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC8
64)/(Vietnam)/(Thai)

Paper type Thermal roll paper
Paper width 48mm/52mm/56mm/64mm/68mm/76mm/80mm
Paper Thickness 0.06~0.08mm
Paper roll diameter 83mm Max
Paper separator support

Dimension 196*145*135mm
Weight 1.65kg
Package box 235*220*170mm
8 in 1 carton 475*445*358mm/14.4kg

Working temperature&
humidity
0 to 45 degrees centigrade, 10%~80% No condensation
Storage temperature&
humidity
-20 to 60 degrees centigrade , 10%~90% No condensation
